Pronk Technologies SC-5 SimCube® + OxSim Flex® Simulation Kit Australia Chivaune Technologies

SC-5 SimCube® + OxSim Flex® Simulation Kit

SC-5 SimCube® + OxSim Flex® Simulation Kit includes: SC-5 SimCube® + OxSim Flex™

This new system provides great value when testing patient monitoring products with basic vital signs parameters, this kit is a great solution that includes all the features of the SimCube® and OxSim Flex® plus accessories. Simultaneously simulate ECG, Respiration, Arrhythmia, Invasive Blood Pressure, NIBP and user-selectable SpO2 simulations, which provide great flexibility and are ideal for the budget-conscious buyer.

Additional features include digital manometer, automated leak test mode, automatic SpO2 manufacturer detection, Masimo rainbow SET® compatibility, customizable Preset SpO2 simulations, heart rate and respiration sequences for faster alarm testing. All battery operated.

Thousands of Biomeds worldwide trust SimCube Vital Signs systems for portable, accurate vital signs simulations. One-button operation means ultra-fast PMs. 4-year parts and labor warranty plus durability to withstand 50 drops from 3.5 feet yield unsurpassed value to this compact package.

View a Side-by-Side Comparison of NIBP Simulation Kits

Back to Products
  • Description
  • Additional information

Description

SC-5 SimCube® + OxSim Flex® Simulation Kit Features:

  • 4 year warranty.

NIBP Simulations

  • Adult (120/80 mmHg), Neonatal (70/40 mmHg), Hypertensive (190/120 mmHg), and Hypotensive (80/40 mmHg) NIBP Simulations
  • Digital Manometer
  • Over Pressure (Peak Detect) Test mode measures the peak pressure produced by the patient monitor. The readout latches the highest pressure valve sensed, in 0.1 mmHg steps
  • Leak Rate Test Mode

ECG/Respiration Simulations

  • 12-lead ECG Simulation
  • 8 Selectable Heart Rates: 30, 60, 90, 120, 140, 160, 200, 240 bpm
  • 10 Selectable Arrhythmias: NSR w/ PVCs, VTACH, VFIB, Asys, Bigeminy, Pacer, Trigeminy, ST+, 2nd Deg. Block, Square Wave
  • 8 Selectable Respiration Rates: 15, 30, 45, 60, 70, 80, 100, 120 bpm
  • Banana Plug Interface

SpO2 Simulations

  • Saturations in 1% increments (10-100%)
  • Pulse rates in 1 BPM increments (25-240)
  • Create custom preset simulations for faster Alarm Testing
  • Perfusion Index levels in 1% increments (10-100%)
  • Factory Preset Simulations:
    • Saturation: 85%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
    • Saturation: 95%, Heart Rate: 40 bpm, Perfusion Index: approx. 2.0
    • Saturation: 98%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
    • Saturation: 98%, Heart Rate: 140 bpm, Perfusion Index: approx. 2.0
    • Saturation: 99%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
  • Masimo rainbow SET® Compatible
  • Automatic detection of SpO2 Manufacturer
  • Color Display – OLED Technology

IBP Simulations

  • 4 IBP Channels
  • 8 Dynamic: 120/80, 60/30, 30/10, 20/10, 125/15, 60/5, 8/2, 4/1 mmHg
  • 7 Static: 0, 25, 50, 100, 150, 200, 250 mmHg

Cardiac Output Simulations

  • 3, 5 and 7 l/m. No adapter cable required

Temperature Simulations

  • YSI 400 and 700
  • 25, 37, and 40 degrees Celsius

Package Contents

  • SC-5 SimCube® NIBP Simulator
  • OX-2 OxSim Flex™ Optical Pulse Oximeter Simulator
  • SL-8 SimSlim® Multi-Parameter Patient Simulator
  • Battery Boost
  • (6) NIBP Adapters
  • Cuff Jacket
  • (1) IBP extension cable

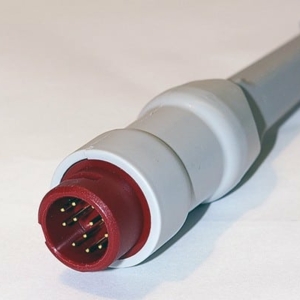

  • (1) IBP Adapter Cable of your choice
  • (1) Specially-modified nylon carrying case

Additional information

Brand

Pronk Technologies
